Product Model: TZ240

Product Code: 80503070

Parameter Description:

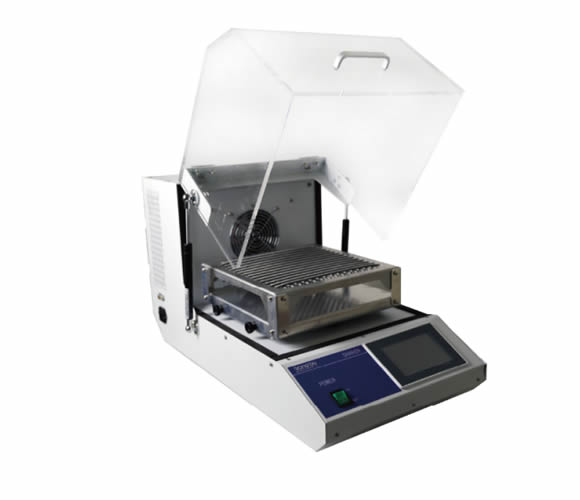

Temperature controlled circular shaker: TZ240

Speed range :10-300rpm

Frequency accuracy :±1rpm

Oscillation diameter: 20mm

Standard fixture :240*mm240*mm*65mm single-layer spring net

Maximum capacity :500ml triangular bottle -4 pcs

Timing range :0-9999min

Temperature control range: room temperature -65 degrees Celsius

Temperature control accuracy :0.1 degree

Constant temperature fluctuation :±0.1 degrees

Display mode: touch screen display and setting

Number of pallets: various clamps can be replaced

Dimensions :640mm*384mm*395mm

Inner cavity size :320mm*327mm*239mm

Internal height :206mm

Net weight :18.44kg

Control mode: touch screen display and setting (man-machine interface) + precision PID control temperature control speed

Heating power :400W

Power supply :220V/50HZ AC input

Optional fixture: triangular bottle fixture, flat tray, double tray, test tube fixture, microporous plate clamp and so on

Gross weight/Outer package size: depending on the logistics area (carton or wooden case)

Whether the fixture is replaceable: A variety of fixtures can be replaced

Working environment temperature :5-45 ℃

Oscillation mode: circular oscillation (reciprocating oscillation can be customized)

Door size :384mm

Door opening mode: upside-down fully open structure (very convenient to use)

Drive mode: DC brushless motor

Fixture list:
