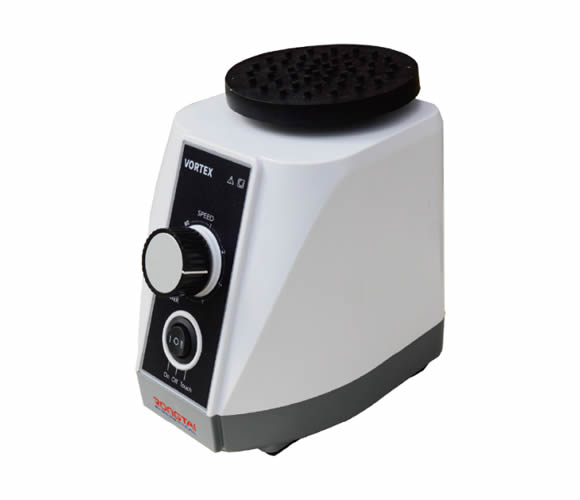

Product Model: VORTEX07
Product Code: 80503022
Product advantages:
1.a variety of fixtures are optional
2.powerful point vibration, continuous, speed regulating vortex mixer
3.adjustable speed control, from low speed vibration to high speed vortex mixing
4.stable operation, sufficient weight of the overall design provides a stable operating platform for a variety of mixing
List of attachments:
1, Standard fixture: conical rubber head
2, Standard fixture: rubber plate flat tray
3, Operation Instruction
Parameter description:
Vortex Mixer | VORTEX07 |
Voltage | 220-230V |
Motor power | 60W |
Mode of oscillation | circumference |
Oscillation diameter | 4mm |
Speed range | 0-2800rpm |
Working mode | Continuous, point, speed regulation |
Allowable humidity | 80% |
Speed/temperature display | scale |
Overall dimension | 170×120×170mm |
Machine weight | 4.8 kg |
Standard fixture | conical rubber head/rubber plate flat tray |
Matching fixture | 1.5ml/15ml/50ml centrifugal tube fixture |
Fixture list:
No. | Fixture Model | Description | Fixture image | Matching Product Model |
1 | VORTEX-SA01 | Conical rubber head | | VORTEX07 |
2 | VORTEX-SA02 | Rubber plate flat tray | | VORTEX07 |
3 | VORTEX08-SB1 | 1.5ml centrifuge tube/24 pieces |
| VORTEX07 |
4 | VORTEX08-SB2 | 15ml centrifugal tubes /6 pieces |
| VORTEX07 |
5 | VORTEX08-SB3 | 50ml centrifugal tubes /4 pieces |
| VORTEX07 |
Vortex Mixer | VORTEX07 |
Voltage | 220-230V |
Motor power | 60W |
Mode of oscillation | circumference |
Oscillation diameter | 4mm |
Speed range | 0-2800rpm |
Working mode | Continuous, point, speed regulation |
Allowable humidity | 80% |
Speed/temperature display | scale |
Overall dimension | 170×120×170mm |
Machine weight | 4.8 kg |
Standard fixture | conical rubber head/rubber plate flat tray |
Matching fixture | 1.5ml/15ml/50ml centrifugal tube fixture |
